UL2960 Low Voltage Computer Cable 电脑线

■ 说明：
● 导体使用裸软铜或镀锡软铜绞线
●PP绝缘
●芯线集合后铝箔麦拉带隔离
●裸软铜或镀锡软铜线地线
●地线置于铝箔麦拉带与编织层之间(或铝箔麦拉带与芯线之间)
●裸软铜或镀锡软铜线编织隔离，至少85%的覆盖率(或没有编织隔离)
●PVC被覆，多芯电脑线与资料传输电缆
●额定温度：80；额定电压：30volts
●通过UL VW-1 垂直耐燃测试
●参考标准：UL 58；UL1581

■ 应用：
●符合国际电工标准规范EIA RS-232及
  规定使用之电脑线。

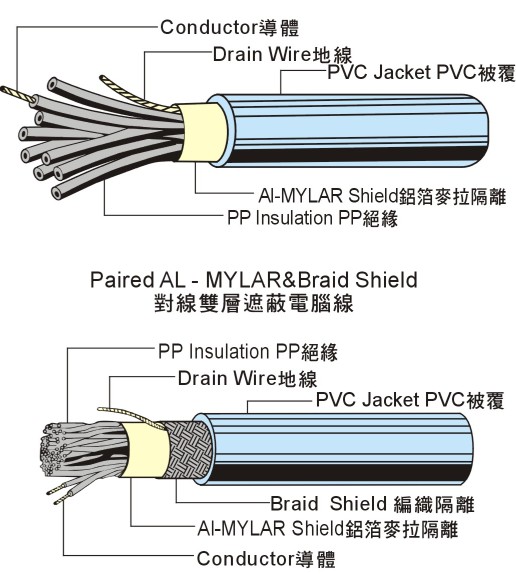

■ PRODUCT DESCRIPTION：
● Tinned or bare stranded copper conductor.
● Color-coded polypropylene(PP) insulation.
● Cores cabled under aluminum mylar shield.
● Tinned or bare copper drain wire.
● Drain wire laid between aluminum mylar and braid
   (or laid between aluminum mylar and core grous).
● Tinned or bare copper wire braid shield up to 85% coverage
   (or no braid shield).
● PVC jacket, multi-pair computer and data transmission cable.
● Rated temperature:80；Rated voltage:30 volts.
● Passes UL VW-1 vertical flame test.
● Referece standard：UL Subject 758, UL1581.


■ APPLICATIONS：
● Computer cable for ElA RS-232 and CAD/CAM applications.
