■说明：
?额定温度/电压:105℃/600V
?执行标准:UL758、UL1581
?导体：绞合44~10AWG裸铜或镀锡铜线
?PVC绝缘，符合ROHS环保要求
?标准绝缘厚度，易剥皮，易裁剪
?通过UL VW-1垂直燃烧测试
■ 应用：
?用于一般电子、电器设备内部连线

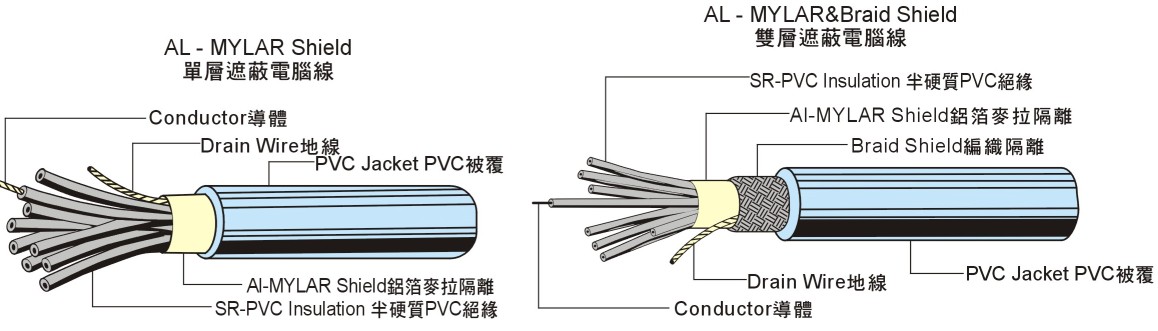

| ■AL-MYLAR SHIELD TYPE(铝箔麦拉隔离型) | |||||||
| Conductor 导体 | No.of Core 芯数 | Insulation Thickness 绝缘厚度 | Jacket Thickness 被覆厚度 | Overall Diameter 完成外径 | Nominaj Capacitance静电容量(PF/FT) | ||
| 线号 | 线数 /线径 | ||||||
| AWG | No./mm | No. | mm | mm | mm | A | B |
| 28 | 7/0.127 | 3 | 0.25 | 0.80 | 3.70 | 28 | 51 |
| 4 | 0.25 | 0.80 | 3.90 | 28 | 51 | ||
| 5 | 0.25 | 0.80 | 4.20 | 28 | 51 | ||
| 6 | 0.25 | 0.80 | 4.50 | 26 | 47 | ||
| 7 | 0.25 | 0.80 | 4.50 | 26 | 47 | ||
| 8 | 0.25 | 0.80 | 4.80 | 26 | 47 | ||
| 9 | 0.25 | 0.80 | 5.10 | 26 | 47 | ||
| 10 | 0.25 | 0.80 | 5.20 | 26 | 47 | ||
| 15 | 0.25 | 0.85 | 5.80 | 26 | 47 | ||
| 25 | 0.25 | 1.00 | 7.60 | 26 | 47 | ||
| 37 | 0.25 | 1.00 | 8.30 | 26 | 47 | ||
| 50 | 0.25 | 1.00 | 9.50 | 26 | 47 | ||
| 26 | 7/0.160 | 3 | 0.25 | 0.80 | 3.90 | 32 | 52 |
| 4 | 0.25 | 0.80 | 4.20 | 32 | 52 | ||
| 5 | 0.25 | 0.80 | 4.50 | 32 | 52 | ||
| 6 | 0.25 | 0.80 | 4.80 | 28 | 51 | ||
| 7 | 0.25 | 0.80 | 4.80 | 28 | 51 | ||
| 8 | 0.25 | 0.80 | 5.10 | 28 | 51 | ||
| 9 | 0.25 | 0.80 | 5.40 | 28 | 51 | ||
| 10 | 0.25 | 0.80 | 5.70 | 28 | 51 | ||
| 15 | 0.25 | 0.85 | 6.40 | 28 | 51 | ||
| 25 | 0.25 | 1.00 | 8.00 | 28 | 51 | ||
| 37 | 0.25 | 1.00 | 9.20 | 28 | 51 | ||
| 50 | 0.25 | 1.00 | 10.40 | 28 | 51 | ||
| 24 | 7/0.203 | 3 | 0.25 | 0.80 | 4.20 | 33 | 65 |
| 4 | 0.25 | 0.80 | 4.50 | 33 | 65 | ||
| 5 | 0.25 | 0.80 | 4.90 | 33 | 65 | ||
| 6 | 0.25 | 0.80 | 5.20 | 33 | 65 | ||
| 7 | 0.25 | 0.80 | 5.20 | 33 | 65 | ||
| 8 | 0.25 | 0.80 | 5.50 | 33 | 65 | ||
| 9 | 0.25 | 0.80 | 5.80 | 30 | 55 | ||
| 10 | 0.25 | 0.80 | 6.20 | 30 | 55 | ||
| 15 | 0.25 | 0.85 | 6.90 | 30 | 55 | ||
| 25 | 0.25 | 1.00 | 8.60 | 30 | 55 | ||
| 37 | 0.25 | 1.00 | 9.80 | 30 | 55 | ||
| 50 | 0.25 | 1.00 | 11.40 | 30 | 55 | ||
| 22 | 7/0.254 | 3 | 0.25 | 0.80 | 4.70 | 37 | 67 |
| 4 | 0.25 | 0.80 | 5.10 | 37 | 67 | ||
| 5 | 0.25 | 0.80 | 5.50 | 37 | 67 | ||
| 6 | 0.25 | 0.80 | 5.80 | 35 | 63 | ||
| 7 | 0.25 | 0.80 | 5.80 | 35 | 63 | ||
| 8 | 0.25 | 0.80 | 6.30 | 35 | 63 | ||
| 9 | 0.25 | 0.80 | 6.70 | 35 | 63 | ||
| 10 | 0.25 | 0.80 | 6.80 | 35 | 63 | ||
| 15 | 0.25 | 0.85 | 7.80 | 35 | 63 | ||
| 25 | 0.25 | 1.00 | 10.00 | 35 | 63 | ||
| 37 | 0.25 | 1.00 | 11.30 | 35 | 63 | ||
| 50 | 0.25 | 1.00 | 12.90 | 35 | 63 | ||
| 18 | 34/0.18 | 2 | 0.4 | 0.80 | 5.80 | 70 | 120 |
| 3 | 0.4 | 0.80 | 6.00 | 70 | 120 | ||
| 4 | 0.4 | 0.85 | 7.10 | 70 | 120 | ||
| 5 | 0.4 | 0.85 | 7.30 | 70 | 120 | ||
